LT PVC / XLPE
CONTROL CABLES
LT PVC / XLPE CONTROL CABLES
Product Range
1100 Volts Grade, 61 Cores Armoured / Unarmoured 1.5 / 2.5 Sq.mm
Technical Parameters
| Voltage Grade | 1100 Volts |
|---|---|
| Relevant Standards |
IS:7098/Part-1/1988, IS:1554/Part-1/1988, IEC-60502 and BS:5467 |
| Number of Cores | 2 Core to 61 Core |
| Cross Sectional Area |
1.5 Sq.mm to 2.5 Sq.mm as per Spec. / IS |

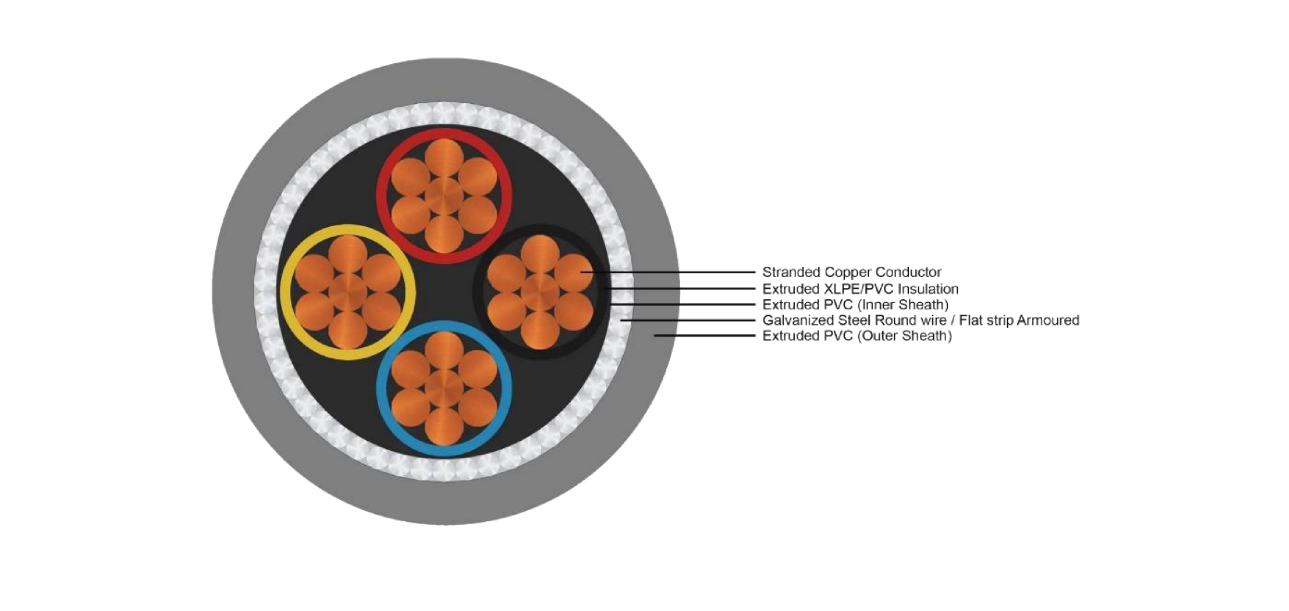

| Type of Conductor | Copper (Bare / Tinned) Solid / Stranded |
| Type of Insulation | XLPE / HR PVC / PVC / LSZH |
| Inner Sheath | Extruded PVC / FR / FRLSH / ZERO HALOGEN (LSZH) (ST-1) or (ST-2) |
Type of Armouring
| Material | Galvanised Steel |
|---|---|
| Type | Round Wire / Flat Strip |
| Outer Sheath | Extruded PVC / FR / FRLSH / ZERO HALOGEN (LSZH) (ST-1) or (ST-2) |
| Drum Lengths | 500 / 1000 Mtrs. |
| Tolerance | +/- 5% |
Cable Code
As per IS:7098/Part-I & IS:1554/Part-I
- A: Aluminium conductor
- (when type designation doesn’t contain ‘A’ in the beginning then cable is with Copper Conductor)
- 2X:At first or second place in type designation, it stands for XLPE insulation
- Y: At first or second place in type designation, it stands for PVC insulation
- W:Round Wire Armour
- F: Flat Strip Armour
- Y:When last in type designation, it stands for PVC Outer Sheath
