FIRE SURVIVAL
CABLES
FIRE SURVIVAL CABLES
Product Range

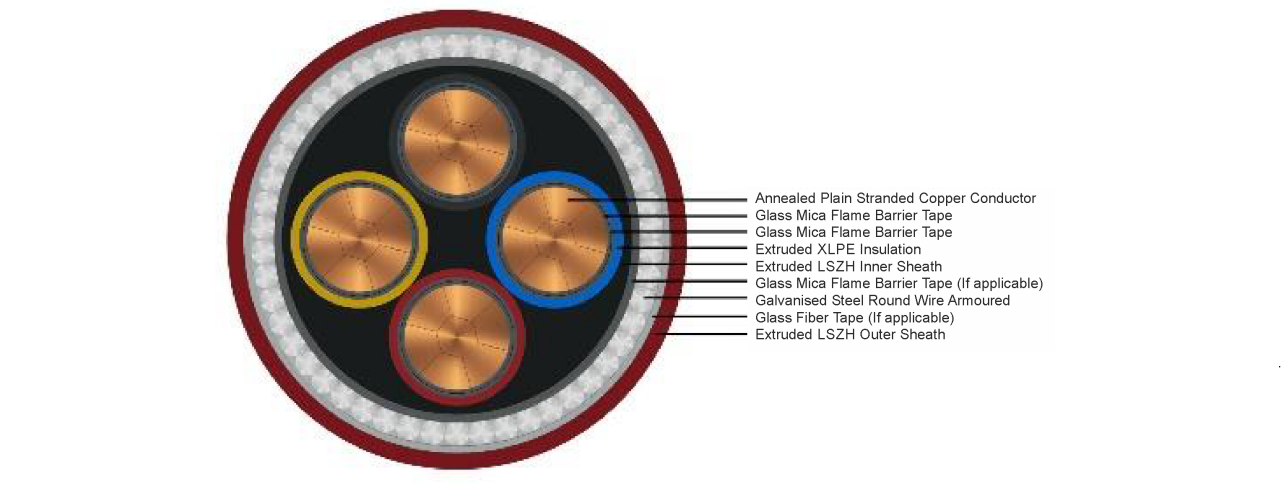

Aluminium / Copper (Bare / Tinned) Conductor with Two layers of Glass Mica Flame Barrier Tape, XLPE Insulated, LSZH Inner Sheathed with overall Mica Tape (if required), Flat / Wire Armoured, overall LSZH outer sheathed
Technical Parameters
| Voltage Grade | 1100 Volts |
|---|---|
| Relevant Standards | BS:7846 |
| Number of Cores & Cross Sectional Area |
2 Core to 4 Core upto 400 Sq.mm 48 Cores upto 2.5 Sq.mm |
| Type of Conductor | Copper (Bare / Tinned) / Aluminium |
| Heat Barrier Tape | 2 Layers of Heat Barrier Glass Mica Tape |
| Type of Insulation | XLPE / PE |
| Inner Sheath | LSZH |
| Armouring | Wire / Flat Strip |
| Outer Sheath | LSZH |
| Drum Lengths | 500 / 1000 Mtrs. |
| Tolerance | +/- 5% |
